2J-Multiband 2JP0126B
Manufacturer : Multiband Antennas Limited
Model : 2JP0126B
-
Ground Plane Independent
-
High Performance, High Efficiency
-
Customizable Cable and Connector
2J-Multiband 2JP0126B
Manufacturer : Multiband Antennas Limited
Model : 2JP0126B
-
Ground Plane Independent
-
High Performance, High Efficiency
-
Customizable Cable and Connector

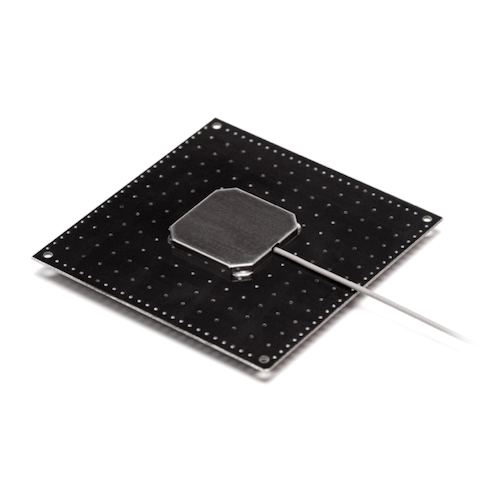

High Performance, Internal Passive Antenna on 7 x 7cm PCB
Features
- Internal Antenna
- Ground Plane Independent
- 5.0 dBi Iridium® Peak Gain
- High Performance
- High Efficiency
- Customizable Cable and Connector
- Iridium Certified Antenna
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 70mm x 70mm x 7.3mm |
| Iridium Embedded Technology | Iridium 9602 Module , Iridium Core 9523 Module |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Antenna | |
| Type | Internal Passive Antenna |
| RF Interface | |
| Frequency Range | 1616 - 1626.5 MHz |
| I / O Impedence | 50 Ohm |
- Iridium Certified
